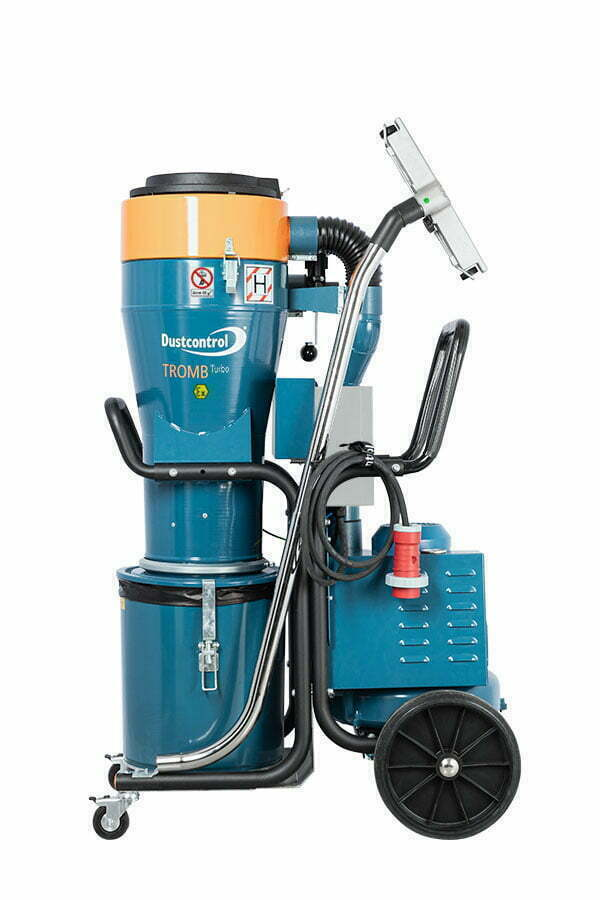

Dustcontrol DC Tromb Turbo EX

  • The dust extractor for continous operation in ATEX zone 22
  • Conforms to the standard that is required by IP65, ATEX zone 22 (conductive dust)
  • HEPA H13 filter included as standard

This medium-sized dust extractor has a powerful three-phase turbo engine suitable for ATEX conductive dust removal. It conforms to the standard that is required by IP65, ATEX zone 22. The DC Tromb Turbo EX is excellent for heavy duty cleaning.km

Features

  • Sturdy chassis
  • Semi-automatic filter cleaning
  • Quick coupling for easy filter change
  • Overheating protection
  • Start box with phase fault and overheating warning
  • Suction hose, Floor nozzle, Suction pipe
  • Fine filter and HEPA filter.

The DC Tromb Turbo EX is delivered as standard with the following:

  • Suction hose Ø 38/50 (5m)
  • Floor nozzle
  • Suction pipe Ø 50
  • Fine filter, polyester
  • HEPA H13 filter, polyester
  • Plastic bag (5st)
Dimensions (HxWxD) [mm]

1415x600x840

Weight [kg]

88

Inlet Ø [mm]

50

Hose length Ø38mm [m]

2

Hose length Ø50mm [m]

5

Collecting container [l]

40

Max. flow fan [m3/h]

260

Negative pressure max. [kPa]

28

Power (kW)

2.2

HEPA filter classification

HEPA H13

Max. sound level [dB(A)]

72

DC Tromb Turbo
